| Classification | AWS A5.9, 309LMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS 309LMo MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | Cr | Ni | S | P | Mo | Cu |
| 0.03 max | 1.0-2.5 | 0.30-0.65 | 23-25 | 12-14 | 0.03 max | 0.03 max | 2-3 | 0.75 max |
| Tensile Strength (psi) | 86,000 psi (593 MPa) |
|---|---|
| Yield Strength (psi) | 57,000 psi (393 MPa) |
| Elongation (%) | 42% |
Contact us to get a quick quote for your requirement.

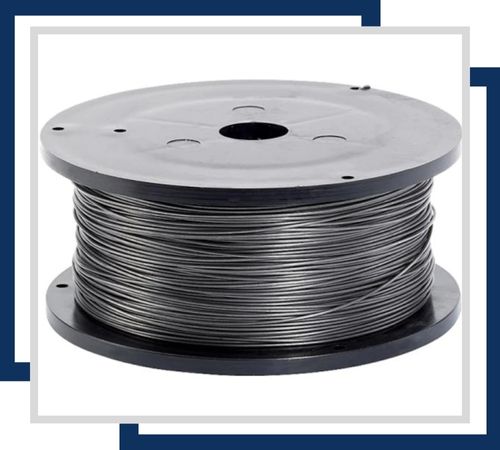

Alloy 309LMo MIG filler wire provides excellent corrosion resistance and high-temperature strength, suitable for welding in harsh environments like chemical processing and power generation.

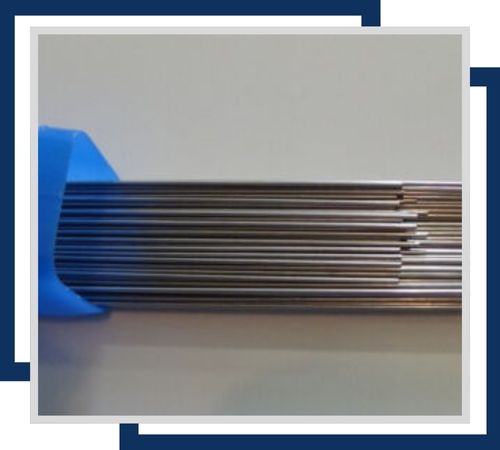

Alloy 309LMo TIG filler wire offers superior resistance to pitting and crevice corrosion, ideal for high-temperature applications and joining dissimilar metals in challenging environments.

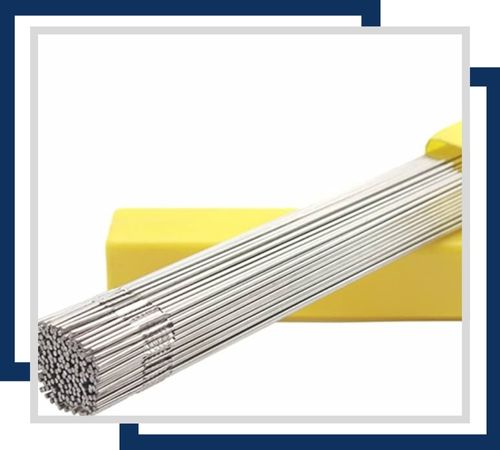

Alloy 309LMo TIG filler rod delivers robust corrosion resistance and strength, perfect for precision welding in harsh conditions, including chemical processing, petrochemical, and power generation industries.
We conduct extensive in-house testing to ensure that the highest quality standards are achieved by 309L Mo MIG and TIG Filler Welding Wires and Rods. Our customers know that we offer comprehensive third-party inspection services for these products to provide them with the assurance that these products are reliable and performing. We equally hold equal attention with regard to the timely supply of products for which you can place your orders in advance thus enabling you to also plan efficiently the other components of your project.
