From the heart of Manama, Bahrain, Niazi Stainless stands as a trusted source for high-performance alloys, proudly supplying industry with the exceptional SMO 254 sheet and plate. We understand that demanding environments require materials that go beyond the ordinary, which is why we provide this super austenitic stainless steel to clients who need unwavering resilience against the toughest corrosive challenges, ensuring the integrity and longevity of their most critical projects.
The strength of SMO 254 lies in its sophisticated composition, which includes high levels of chromium, nickel, and molybdenum, along with a purposeful addition of nitrogen. This unique recipe grants it outstanding mechanical properties, such as high tensile and yield strength, excellent ductility, and remarkable impact toughness. These characteristics make it a robust and reliable choice, capable of performing under significant stress and in a wide range of temperatures.
| STANDARD | Stainless Steel 348H Sheet and Plate |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| UNS | S31603 |
| WERKSTOFF NO. | 1.4404 / 1.4435 |
| AFNOR | Z7CND17‐11‐02 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
| Elements | Carbon | Chromium | Manganese | Molybdenum | Nickel | Nitrogen | Phosphorus | Silicon | Sulphur |
|---|---|---|---|---|---|---|---|---|---|
| SMO 254 UNS S31254 | 0.02 max | 19.5-20.5 | 1.0 max | 6.0-6.5 | 17.5-18.5 | 0.18-0.22 | 0.03 max | 0.8 max | 0.01 max |
| 0.2% Proof Stress (N/mm2 ) [ksi] minimum | 300 [43.5] |
| Tensile Strength (N/mm2) [ksi] minimum | 650 |
| Elongation (%) minimum | 35 |
| Hardness (HBN) | 270 max |
| Reduction of Cross Section Area (%) | 50 |
Contact us to get a quick quote for your requirement.

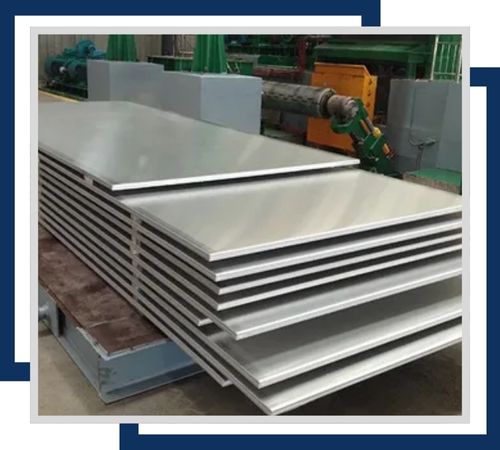

SMO 254 hot rolled plates have high strength and resistance to corrosion, and therefore, can be used for heavy-duty applications. The material is usually in a thickness range of 3mm to 50mm with width up to 2000 mm. It also comes in hot-rolled finish for strength and durability with the capability of sustaining high temperature and aggressive environment.

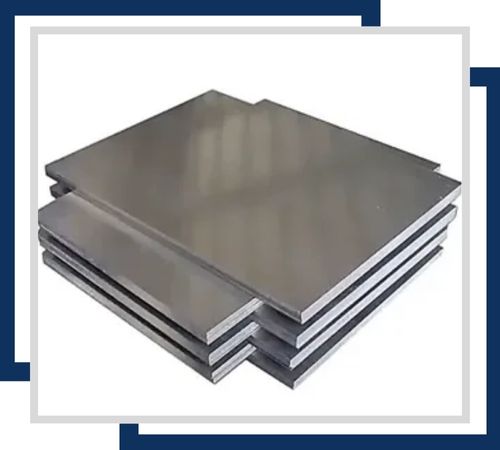

SMO 254 Cold Rolled Sheets provide a bright surface finish and excellent dimensional accuracy, with good corrosion resistance. These sheets are available in thickness from 0.5 mm up to 3 mm and widths up to 1250 mm. The strength of these sheets is improved by cold rolling, making them ideal for precision applications.

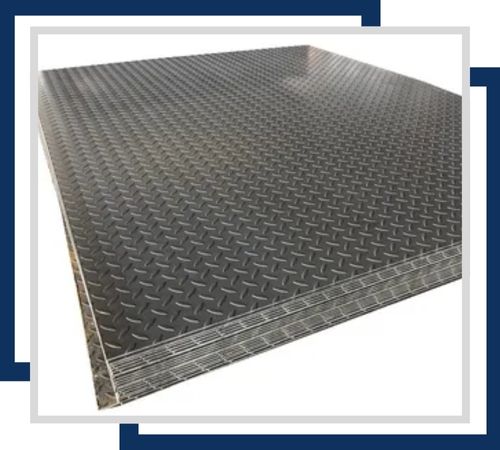

SMO 254 Chequered Plates offer an embossed pattern for increased slip resistance and longevity. Thickness options range from 3 mm to 12 mm, with a maximum width of 1500 mm. They are used as flooring in most industrial applications, offering great corrosion resistance.

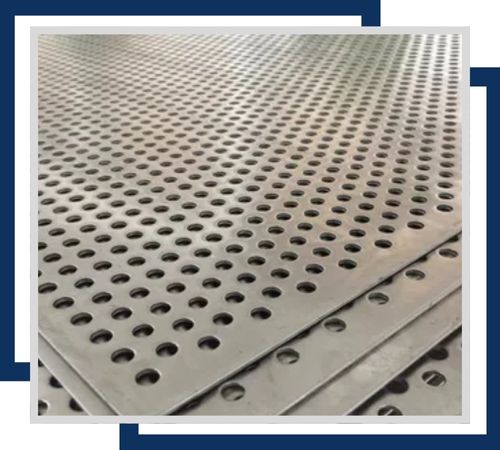

SMO 254 Perforated Sheets come in different perforation patterns depending on the design and functional requirements of the application. They are offered in thickness ranges from 1mm to 6mm and width up to 1200 mm. Due to their high resistance to corrosion, they are used both for decorative as well as industrial applications.

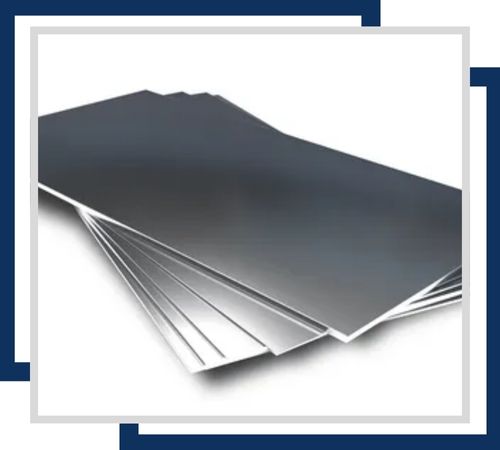

SMO 254 Shim sheets are used with a spacing or aligned application for variety of usages. Generally made available with widths up to 1000mm and a standard thickness between 0.1 mm and 1mm these shim sheets promise excellent corrosion resistivity under stringent conditions, performing well even during long exposure.

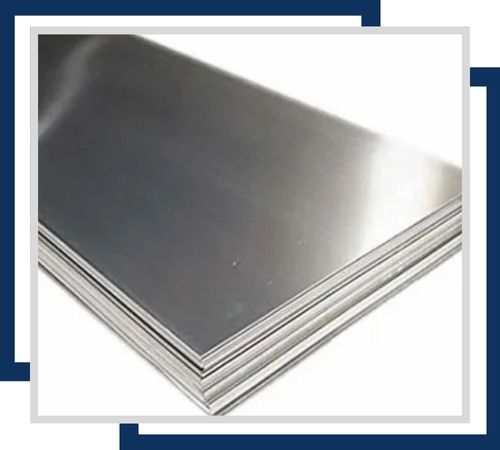

SMO 254 Polished Plates have high-quality reflective surfaces and are aesthetically pleasing along with corrosion resistant. They have a thickness from 2mm to 25mm and can be up to 1500mm in width. The architectural and decorative usage is possible by the polished surface.
Niazi Stainless commits to delivering the best seamless experience to our valued customers with extensive documentation on top-quality SMO 254 Sheets and Plates. We deliver to our clients, all necessary documents such as the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports, all of which would ensure authenticity as well as superiority in our product offerings. In addition, test certificates, MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate are supplied with our SMO 254 Sheets and Plates, which reveal our customer-oriented approach and a commitment to producing high-quality products.
This combination of superior corrosion resistance and mechanical strength makes SMO 254 indispensable across many demanding sectors. It is commonly used in marine environments for components like propeller shafts and seawater piping systems, in chemical processing plants handling aggressive acids, and in flue gas desulfurization units. Its reliability also makes it a preferred material for pharmaceutical equipment and in the construction of pollution control scrubbers, where failure is not an option.
