From the heart of Manama’s bustling industrial scene, Niazi Stainless stands as your trusted partner for premium metal solutions. We are proud to supply high-quality Stainless Steel 17-7 PH Sheet and Plates, a material chosen by engineers for its remarkable ability to be strengthened through heat treatment. This unique characteristic makes it an ideal choice for demanding environments where exceptional strength and reliable corrosion resistance are non-negotiable, ensuring your projects are built on a foundation of enduring performance and quality.
The strength of 17-7 PH comes from its precise composition, which includes chromium and nickel for corrosion resistance, along with aluminum. This specific blend allows it to undergo a unique hardening process. After this heat treatment, the material achieves outstanding mechanical properties, including very high tensile strength and impressive hardness. Despite this significant strength, it maintains good ductility, meaning it can be formed and shaped without cracking, offering a superb balance for complex fabrication needs.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

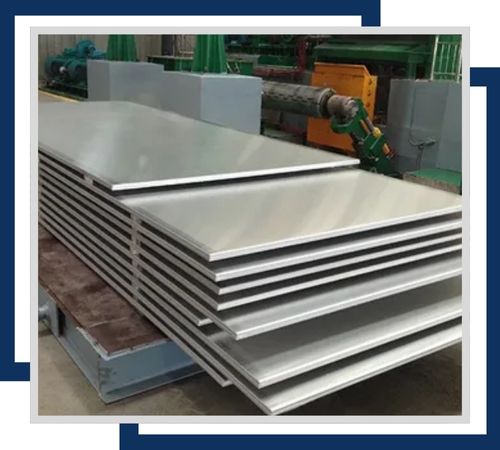

Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

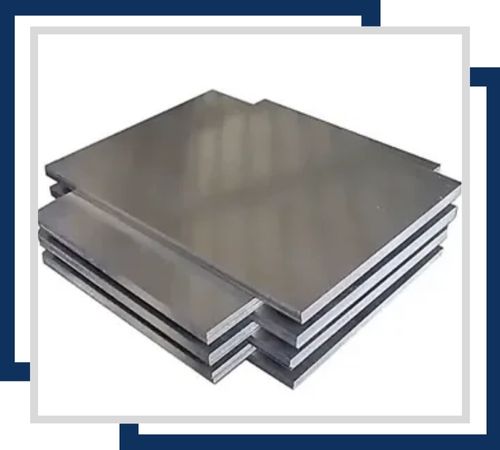

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

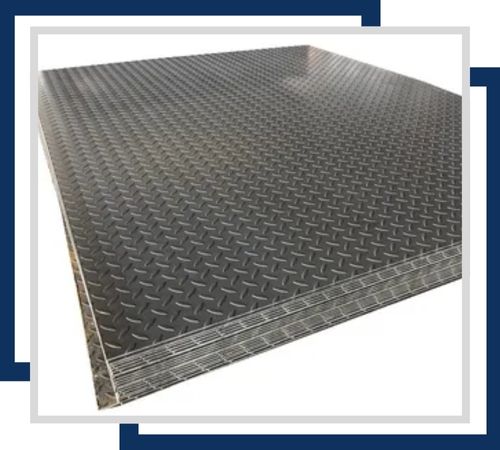

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

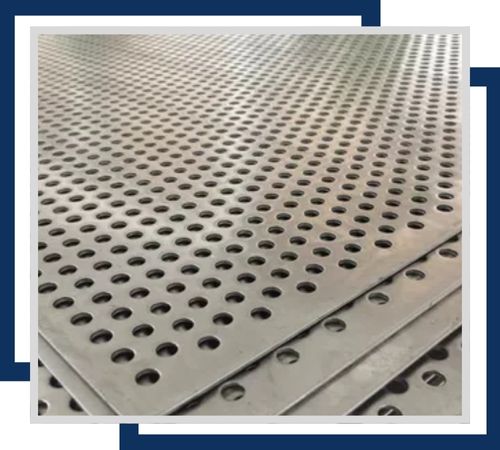

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

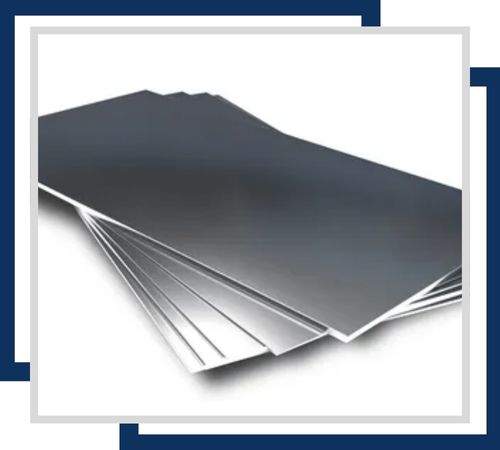

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

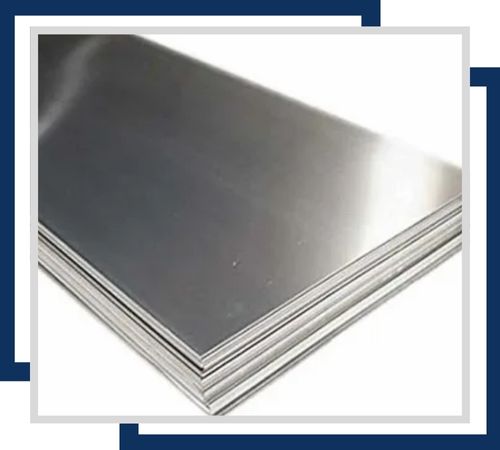

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Niazi Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
You’ll find 17-7 PH sheets and plates hard at work in critical applications across various demanding industries. They are essential in aerospace for components like aircraft skins and structural parts, and in chemical processing for parts that must withstand corrosive substances. The springs in your vehicle and various high-stress components in machinery often rely on this material’s resilience. Its combination of strength, corrosion resistance, and reliability also makes it a preferred choice for precision instruments and other products where failure is simply not an option.
