Based in Manama, Bahrain, Niazi Stainless stands as a trusted source for industrial-grade materials, particularly renowned for our high-performance Stainless Steel 310/310S sheets and plates. We understand that your projects demand reliability under extreme conditions, which is why we provide this superior alloy known for its exceptional resistance to heat and corrosion. Our commitment extends beyond supply to ensuring you receive material that meets rigorous international standards, backed by our local expertise and dedicated customer support, making us a preferred partner for critical applications across the region.
The strength of 310/310S lies in its carefully balanced composition, which includes high levels of chromium and nickel. This formulation grants it outstanding resistance to oxidation, allowing it to perform reliably in temperatures reaching up to 1150°C. Mechanically, it offers excellent tensile strength and good ductility, even after prolonged exposure to high heat. This combination of chemical and physical properties makes it a truly durable and resilient material, engineered to maintain its integrity where other steels would fail, ensuring long-lasting performance in demanding environments.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | Fe | |
|---|---|---|---|---|---|---|---|---|
| 310 | 0.25 max | 2.0 max | 1.50 max | 0.045max | 0.03max | 24-26 | min: 8.0 max: 12.0 | Balance |
| 310S | 0.08 max | 2.00 max | 1.50 max | 0.045 | 0.03 | 24-26 | 19-22 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 310 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
| 310S | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
Contact us to get a quick quote for your requirement.

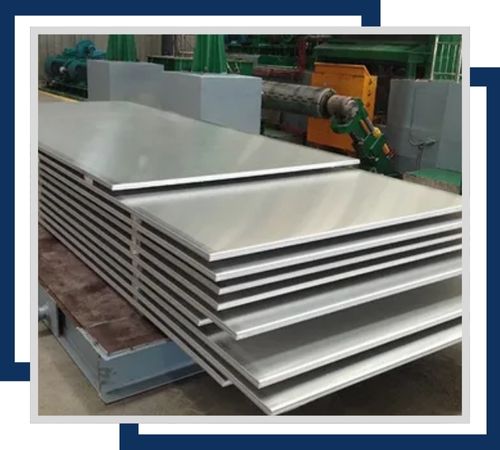

Hot-rolled sheets of Stainless Steel 310 are corrosion-resistant and resistant to corrosion and have high temperature stability. Available in sizes of 1.5 mm up to 25 mm thick, dimensions vary with customer requirements and offer robust performance in high-temperature applications.

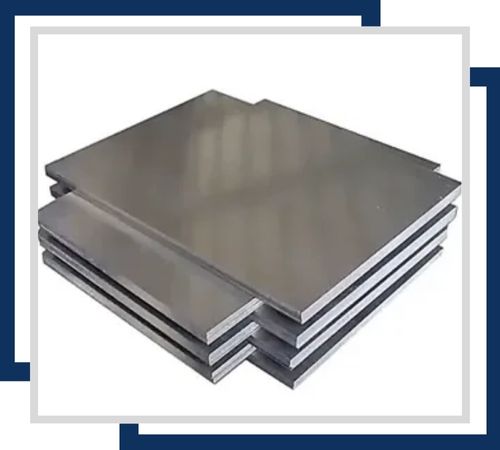

Available in gauges from 0.4 mm to 3 mm thickness, these have excellent corrosion resistance and improved surface finish. Suitable for applications which require tight tolerance and smoothness of the surfaces, these have precision and strength.

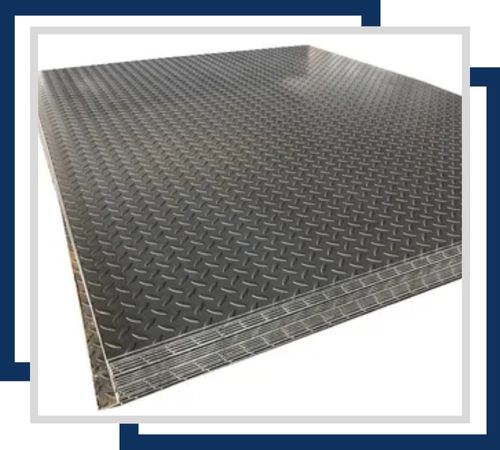

The Stainless Steel 310 chequered plates offer corrosion resistance with the added feature of slip resistance. The thickness varies from 2 mm to 12 mm. They are applied in floorings and industries for better traction.

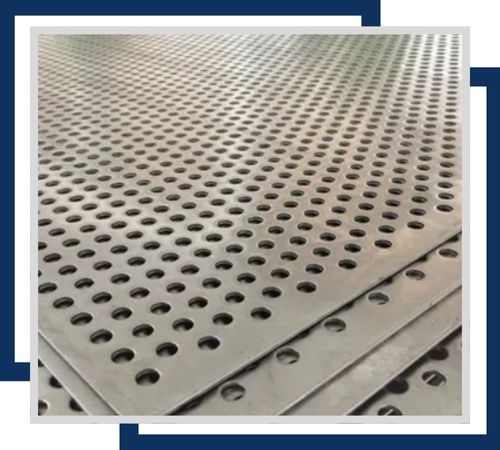

Stainless Steel 310 perforated sheets have available hole sizes and patterns that create aesthetic and practical benefits. Generally, thickness varies from 0.5 mm to 6 mm and finds application in filtration, ventilation, and decoration purposes.

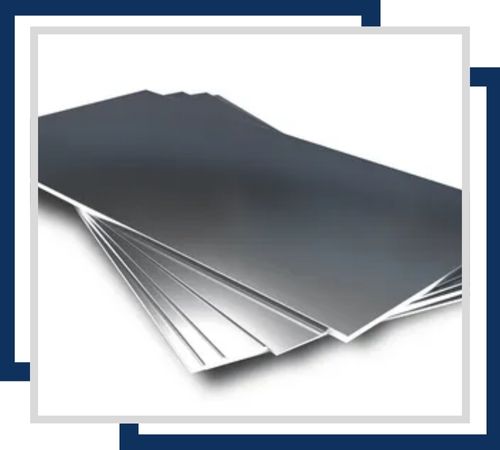

The shim sheets are made of stainless steel 310S and are available in thickness ranging from 0.1 mm to 1 mm. The thin sheets produce exact gaps or spaces in mechanical assemblies for adjustment.

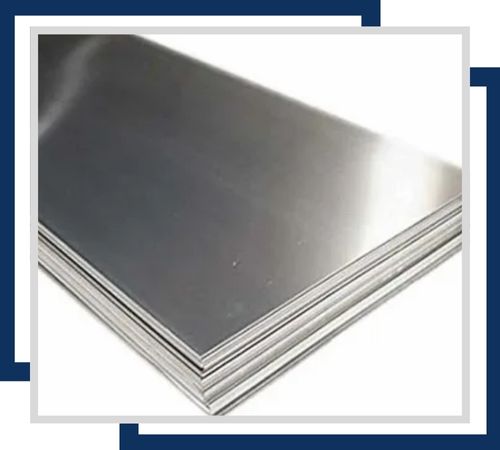

Stainless steel 310S polished plates combine corrosion resistance with high-quality finishes, both aesthetic and functional. They are available in 0.5 mm to 50 mm thickness and extensively used for decorative and high-end industrial applications.
Niazi Stainless is providing a hassle-free experience to our esteemed customers by issuing a complete documentation set for all our high-grade Stainless Steel 310/310S Sheets and Plates. Documents such as Commercial Invoices, Packing Lists, Fumigation Certificates, Heat Treatment Charts, Quality Assurance Plans, NABL-approved Laboratory Test Reports accompany our products ensuring authenticity and superb quality. In addition, our Stainless Steel 310/310S Sheets and Plates are provided with a variety of test certificates, such as MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, which reflect our commitment to customer satisfaction and our continuous pursuit of product excellence.
The exceptional heat resistance of 310/310S sheets and plates makes them indispensable in industries where high temperatures are a constant challenge. You will commonly find this material used in vital components such as furnace parts, heat treatment equipment, and industrial heating elements. It is also perfectly suited for applications in the chemical processing sector, for constructing high-temperature piping and reactor vessels. Its ability to withstand thermal cycling and corrosive atmospheres makes it a go-to choice for projects that cannot afford compromise, ensuring safety and efficiency where it matters most.
