Nestled in the industrial heart of Manama, Bahrain, Niazi Stainless stands as a trusted partner for high-performance metal solutions. Specializing in the manufacturing and supply of premium components, our Stainless Steel 310H Flanges exemplify our commitment to durability and precision. Crafted to meet the most demanding specifications, these flanges are designed for enduring reliability in critical applications, ensuring your projects benefit from both superior material quality and the assured backing of a reputable local supplier.
The composition of Stainless Steel 310H includes generous amounts of chromium and nickel, with a crucial addition of carbon that enhances its strength at high temperatures. This specific chemistry grants the flanges exceptional mechanical properties, including superior tensile strength and excellent creep resistance. These characteristics allow the flanges to maintain their structural integrity and resist deformation even when subjected to continuous high-heat environments, ensuring long-term performance.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.00 | 1.00 | 0.045 | 0.030 | 26.0 | 21.0 | |||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 310H Flanges- Niazi Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Niazi Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

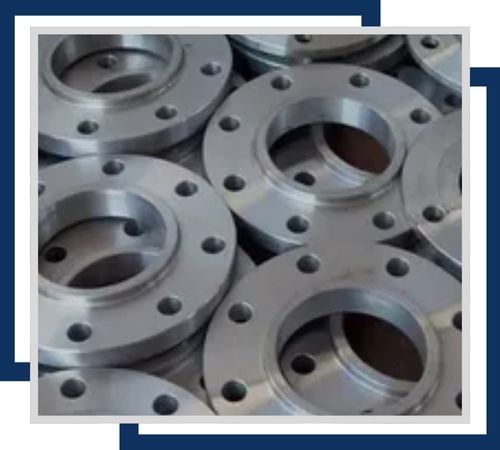

SS 310H long weld neck flanges are robust stainless steel fittings designed for high-pressure applications. Their extended neck provides strength and stability, making them ideal for critical, high-temperature environments.
SS 310H lap joint flanges are versatile stainless steel components designed for ease of assembly and disassembly. They offer excellent resistance to high temperatures and corrosion, making them ideal for dynamic applications.
SS 310H reducing flanges facilitate the transition between different pipe sizes in high-temperature systems. Made from stainless steel, they offer exceptional strength and corrosion resistance, ensuring reliable performance under demanding conditions.
In practical terms, Stainless Steel 310H Flanges are the go-to choice for demanding high-temperature settings. You’ll find them connecting pipes and equipment in furnace installations, industrial ovens, and boiler systems where heat is a constant factor. Their resilience also makes them indispensable in chemical processing and power generation plants, where they securely manage the flow of hot gases and other media, ensuring safe and uninterrupted operations under strenuous thermal conditions.
