Niazi Stainless, located in Manama, Bahrain, offers top-notch stainless steel 440B sheets and plates, celebrated for their remarkable hardness, wear resistance, and ability to withstand corrosion. Crafted with precision, these sheets and plates are perfect for applications that demand high strength and stability. Niazi Stainless guarantees that all 440B products adhere to international quality standards, making them ideal for rigorous industries like aerospace, automotive, tooling, and precision engineering, where performance and reliability are paramount.
Stainless Steel 440B is a high-carbon martensitic stainless steel that contains 16–18% chromium, 0.35–0.45% carbon, along with trace amounts of manganese and silicon. This unique blend results in outstanding hardness, wear resistance, and decent corrosion resistance post-heat treatment. Its mechanical properties boast high tensile strength, hardness levels reaching 58–60 HRC, and good toughness, making it perfect for parts that face heavy wear or stress.
| Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Profiling | Plasma Plate Cutting, Laser Plate Cutting, Oxy-propane Flame Cutting |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 440B | 0.6 -0.75 | 1.00 max | 1.00 max | 0.04 max | 0.030 max | 16.00 -18.00 | – |
| Tempering Temperature (°C) | Tensile Strengtd (MPa) | Yield Strengtd 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed* | 758 | 448 | 14 | 269HB max | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

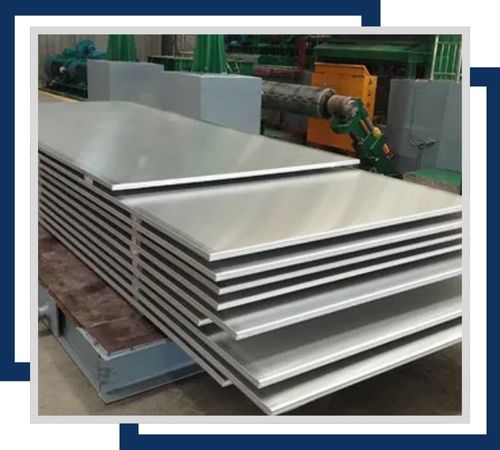

The excellent corrosion resistance provided by Stainless Steel 440B Hot Rolled Sheets ensures that it can be delivered in sizes between 3mm up to 150mm thickness, and in up to 2500mm width, for use where high strength and resistance to wear is required.

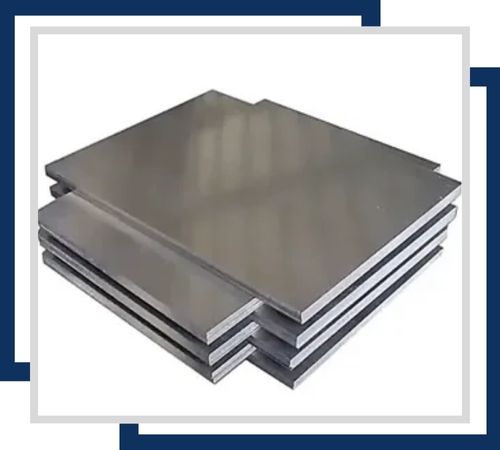

Cold-rolled stainless steel plates 440B have excellent corrosion resistance and a bright finish. These plates are available in a thickness range of 0.3mm to 6mm and widths up to 2000mm, which makes them ideal for precision applications that require tight tolerances.

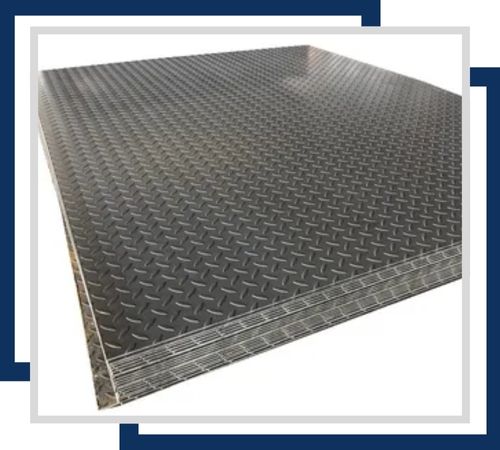

Stainless Steel 440B Chequered Plates, with raised patterns for improved grip, are resistant to corrosion. The thicknesses available are 1.5mm to 10mm, and the widths go up to 1500mm, which is perfect for flooring and stair treads.

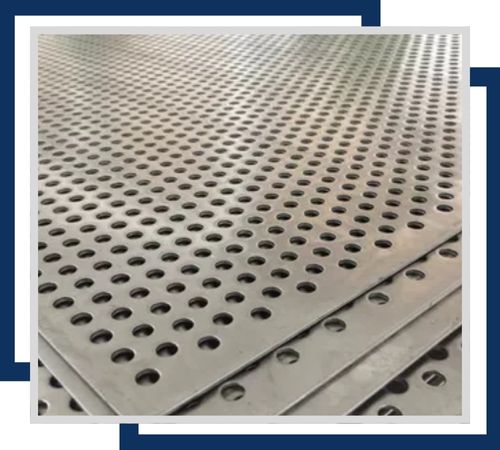

The perforated sheets are made from Stainless Steel 440B, providing corrosion resistance and ventilation. Generally available in a thickness range of 0.5mm to 3mm, and sheet sizes up to 2000mm x 4000mm, the perforated sheets are used for filtration, architectural, and decorative applications.
Stainless Steel 440B Shim Sheets are corrosion resistant and find applications in fine adjustment of machines and tools. The sheets have a thickness ranging from 0.05mm to 3mm and come in standard sizes such as 1000mm x 2000mm.
The 440B Polished Plates of Stainless Steel offer corrosion resistance along with an excellent aesthetic appeal, and are offered in a variety of thicknesses between 1mm and 50mm and widths up to 2000mm, especially for decorative and architectural applications.
At Niazi Stainless, we give prime importance to quality along with great customer service backed up by rich documentation of the excellent Stainless Steel 440B Sheets and Plates that we deliver. We give essential documents that include the commercial invoice, the packing list, fumigation certificate, heat treatment chart, quality assurance plan, and a lab test report NABL approved. Such rich documentation of these premium quality products increases trust and confidence in the product from the most valued customers’ side. Besides, we provide Stainless Steel 440B Sheets and Plates with different test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, as a reflection of our commitment to excellence and customer satisfaction.
440B sheets and plates find extensive use in precision components, cutting tools, bearings, valves, knives, and parts for industrial machinery. Their blend of wear resistance, strength, and corrosion resistance makes stainless steel 440B sheets and plates the go-to choice for applications where durability, performance, and longevity are crucial.
