Niazi Stainless has built a solid reputation as a reliable manufacturer and supplier of Stainless Steel Forged Fittings in Manama, Bahrain. They specialize in high-performance forged fittings designed for tough industrial applications. With a keen emphasis on durability, corrosion resistance, and precision engineering, Niazi Stainless consistently delivers products that align with international quality standards and industry needs. Their extensive product lineup features forged elbows, tees, couplings, unions, caps, reducers, and even customized fittings tailored for high-pressure piping systems. Supported by state-of-the-art manufacturing facilities and a dedicated technical team, Niazi Stainless guarantees exceptional reliability, superior material strength, and a long service life, establishing themselves as a top supplier across various industrial sectors in Bahrain.
Stainless Steel Forged Fittings made by Niazi Stainless in Manama, Bahrain are usually crafted from materials like SS 304, 304L, 316, and 316L. These grades include important alloying elements such as chromium, nickel, molybdenum, and a bit of carbon. Thanks to their impressive corrosion resistance, tensile strength, and hardness, these fittings are perfect for high-temperature and high-pressure applications. The forging process enhances the grain flow, boosts toughness, and minimizes defects. With outstanding yield strength, great elongation properties, and strong resistance to pitting and stress corrosion cracking, these fittings promise durability and structural integrity for the long haul.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel forged fittings undergo rigorous testing to ensure quality, strength and durability. Each product is thoroughly inspected using advanced techniques such as dimensional testing, pressure testing and material analysis. The company offers a full range of certifications, including ASTM, ISO, and other industry standards, assuring reliable and compliant fittings.

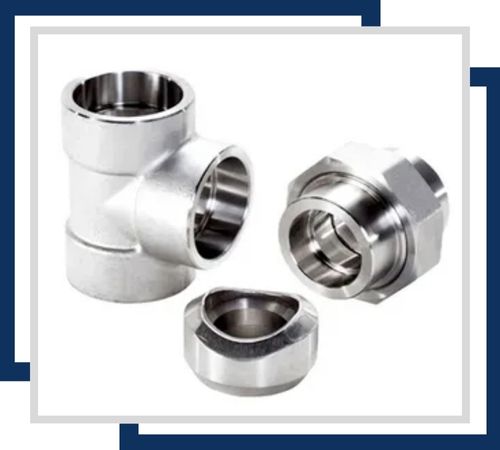

Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

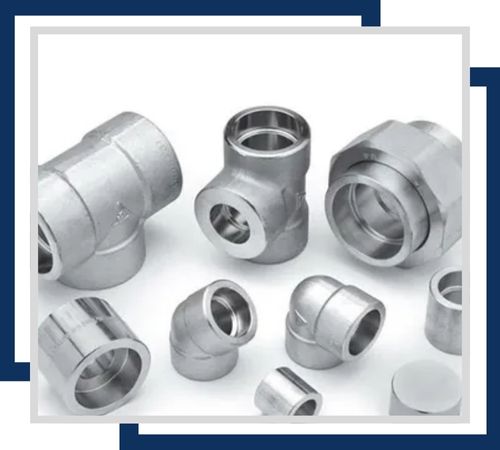

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.

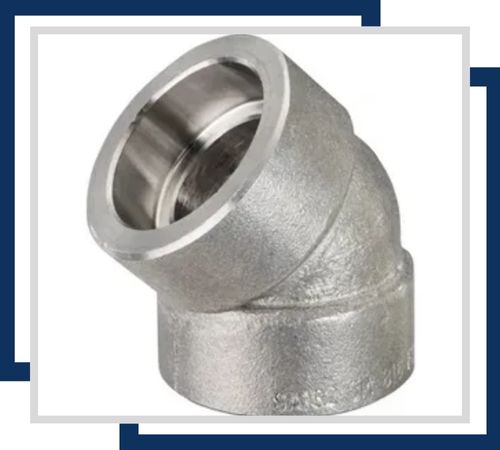

Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.

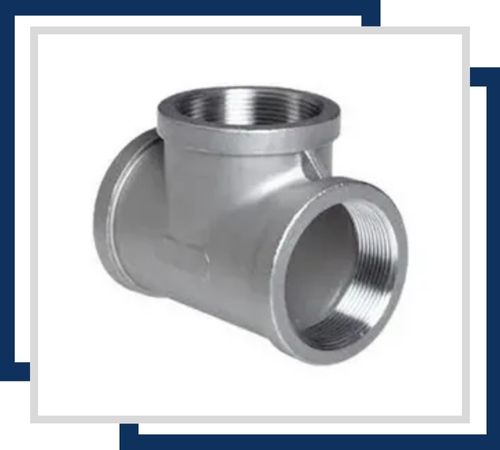

Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

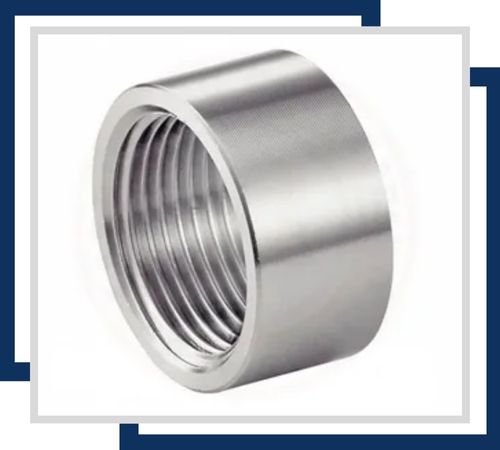

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

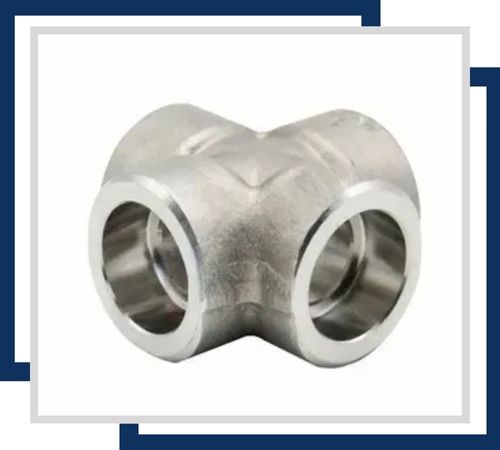

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
Stainless Steel Forged Fittings from Niazi Stainless are a go-to choice in various industries throughout Manama, Bahrain, thanks to their dependable performance in high-pressure and high-temperature settings. These fittings play a crucial role in piping systems for oil and gas, petrochemical plants, chemical processing units, food and beverage sectors, water treatment facilities, desalination plants, and even marine applications. Their impressive corrosion resistance and durability also make them ideal for pharmaceutical, power generation, and offshore uses. Crafted to ensure leak-proof flow control and enhance system efficiency, these forged fittings offer a safe and secure connection in critical systems where performance and safety are top priorities.
